Example Drawing KIRKWOOD AVE
Product

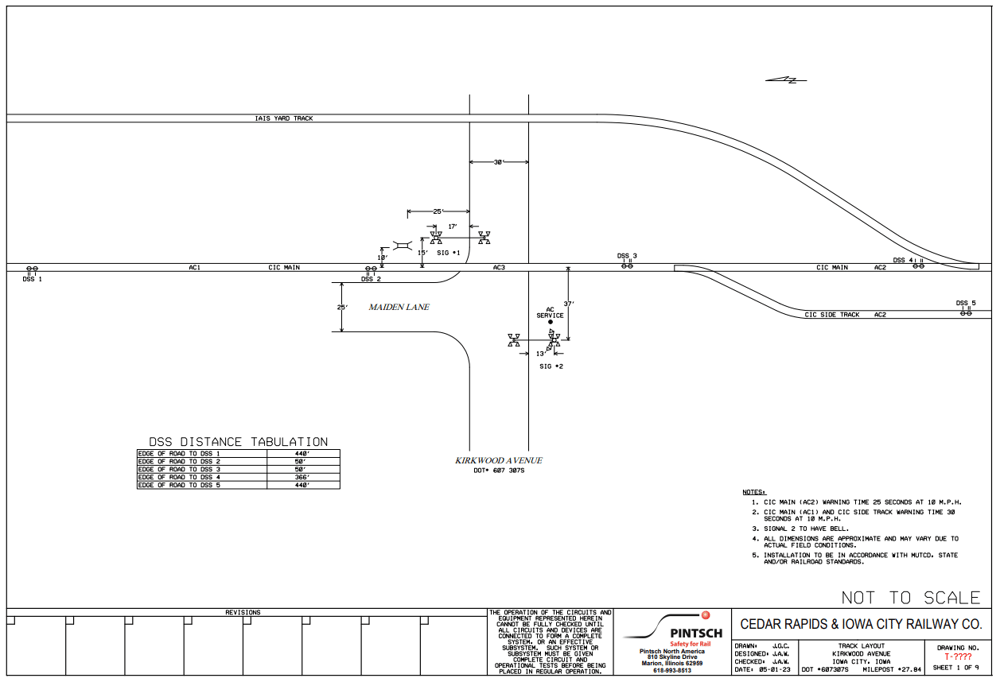

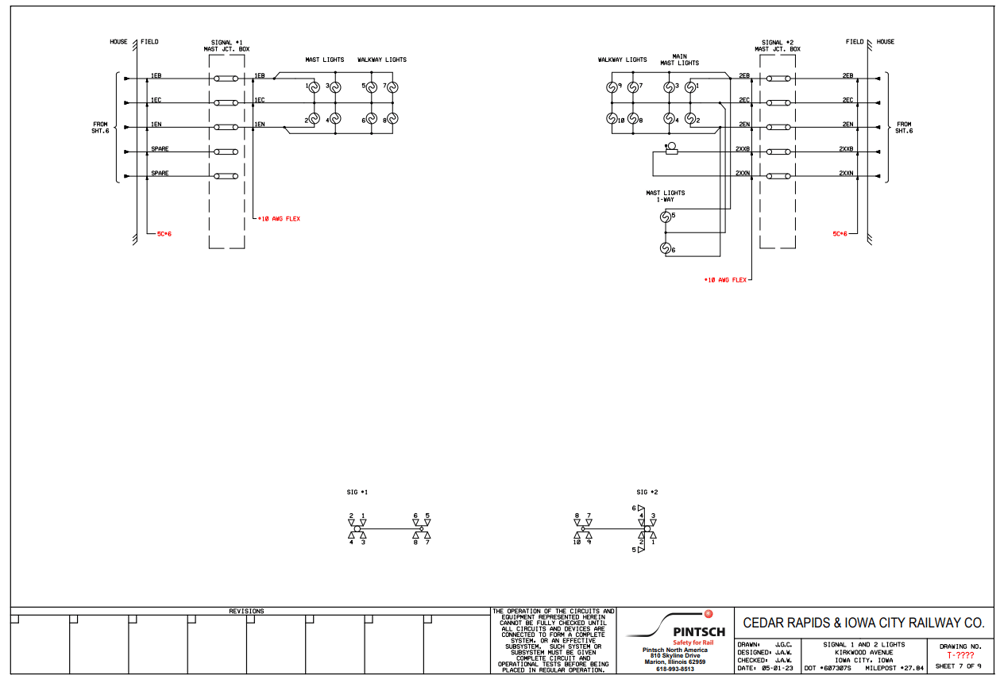

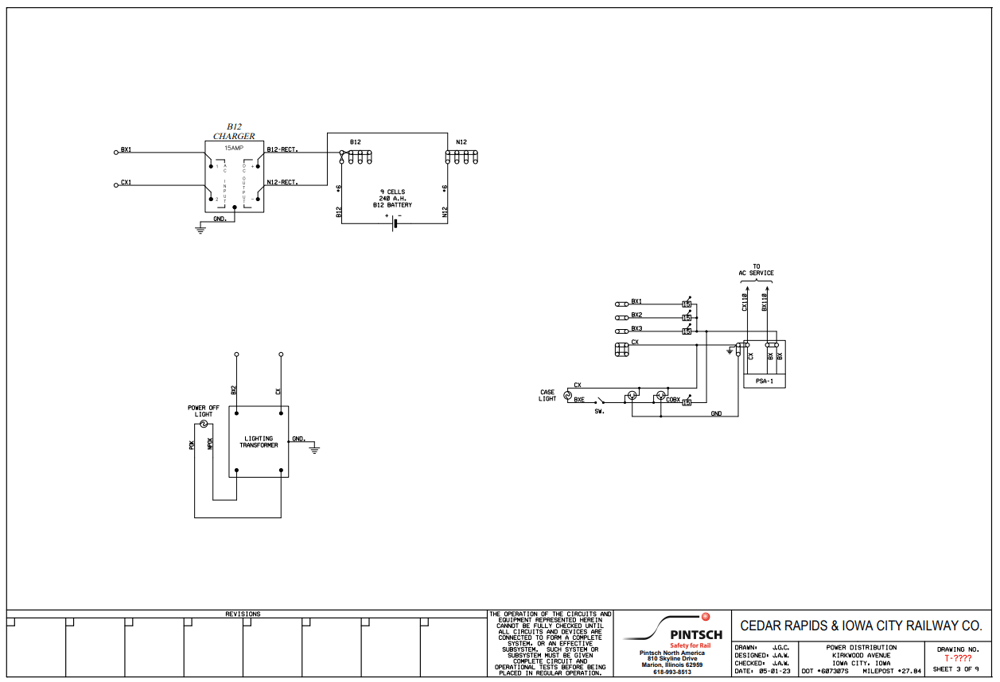

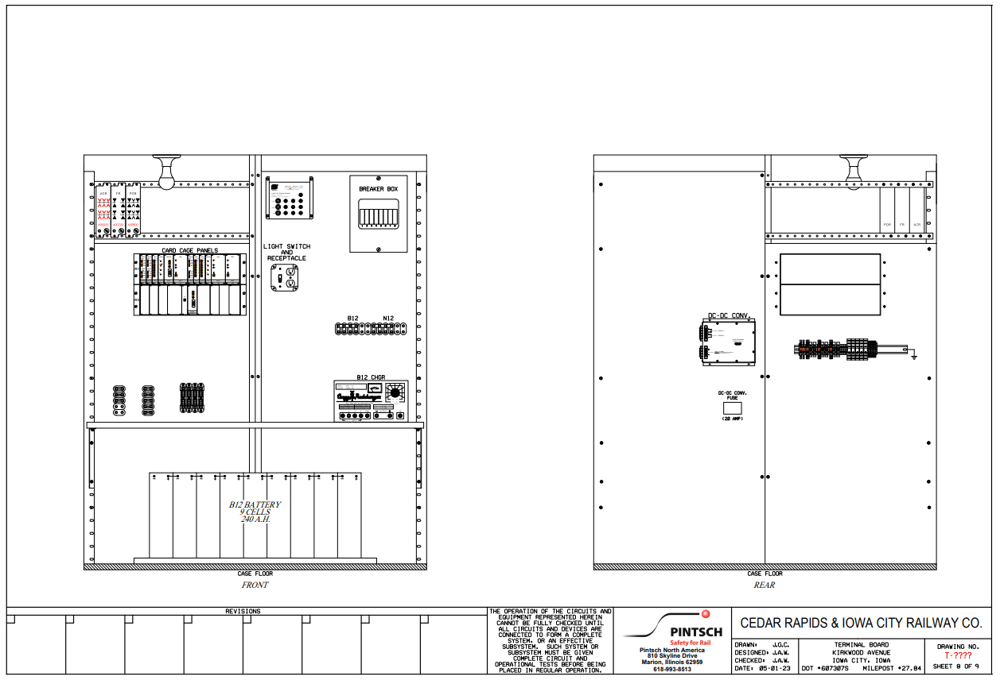

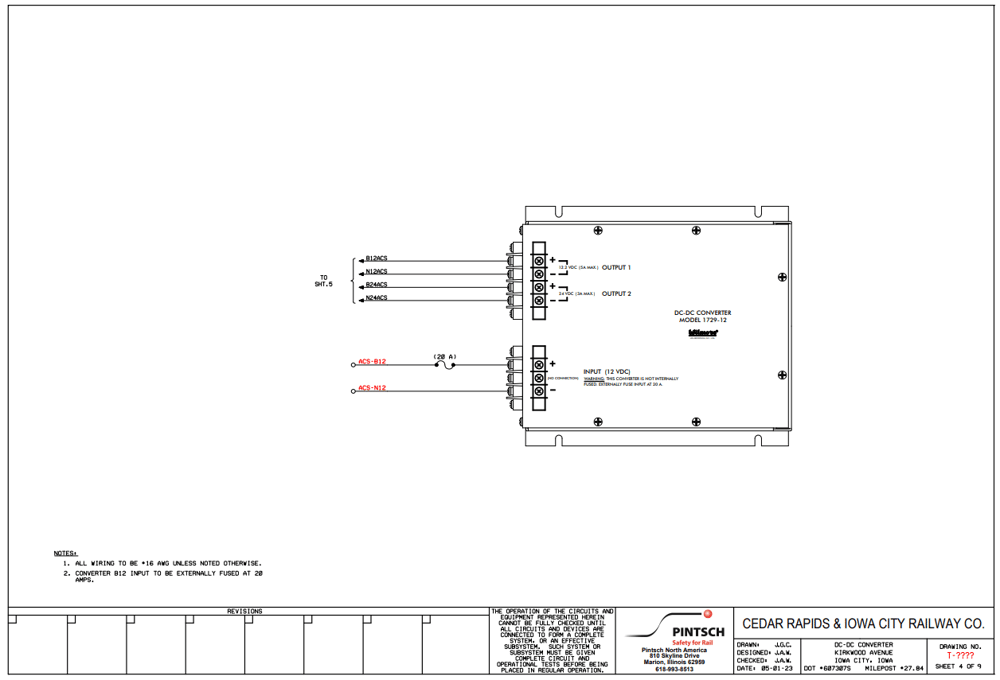

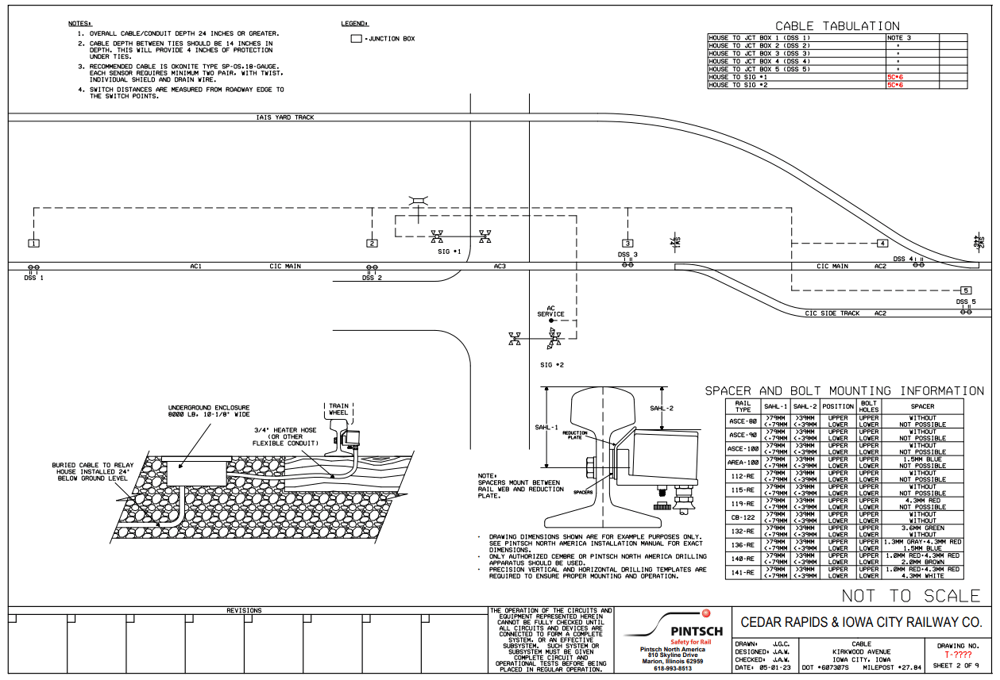

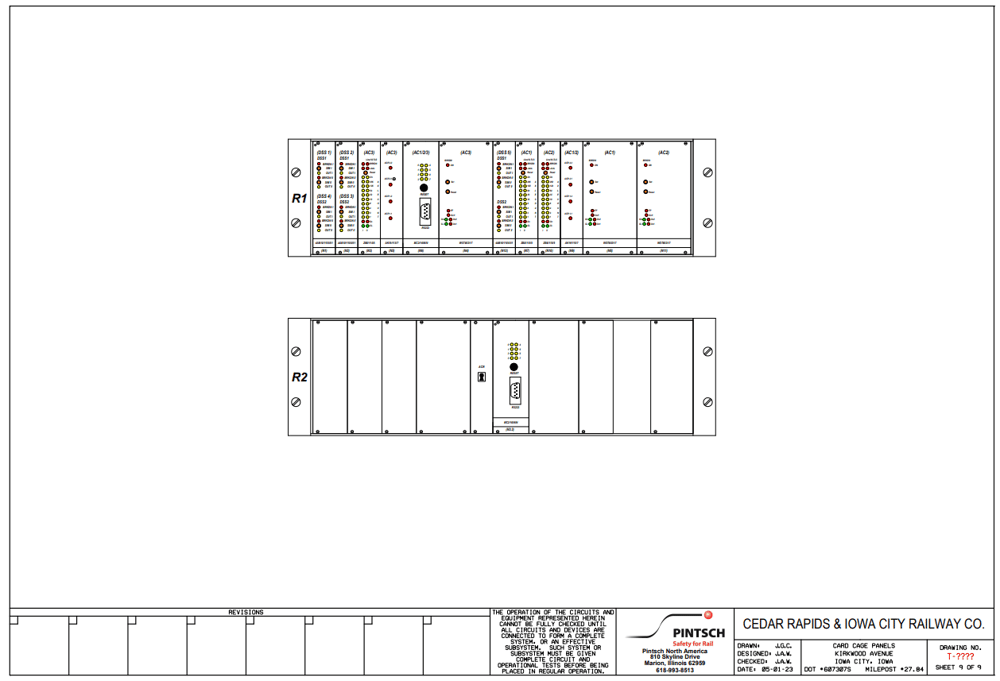

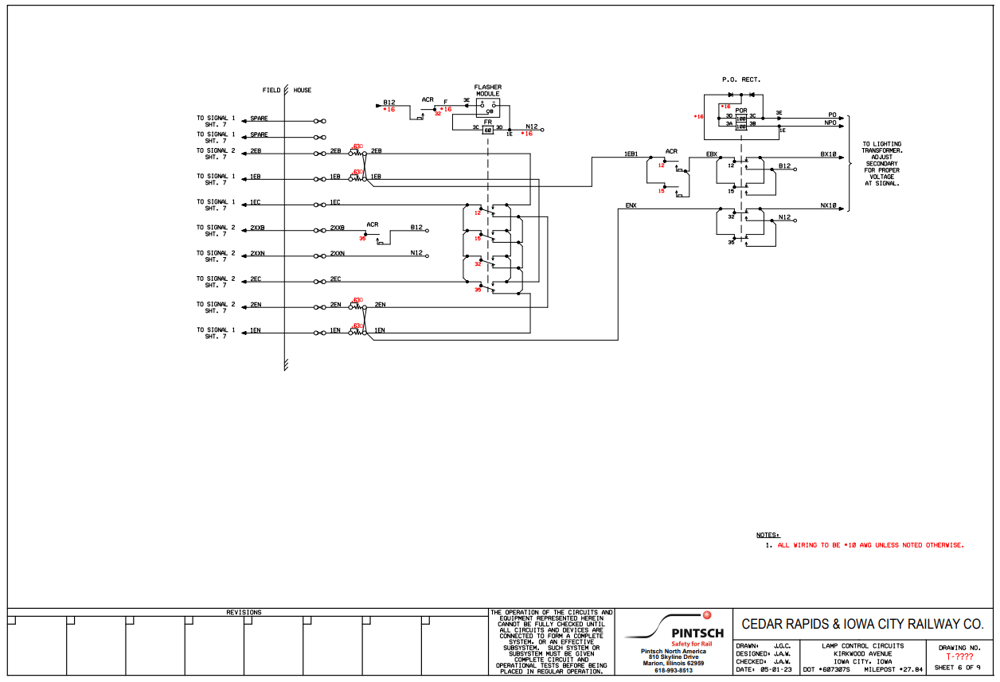

Pintch Tieffenbach NA | Cedar Rapids Kirkwood Avenue Example Drawings
