Example Drawing STEENS DRIVE
Product

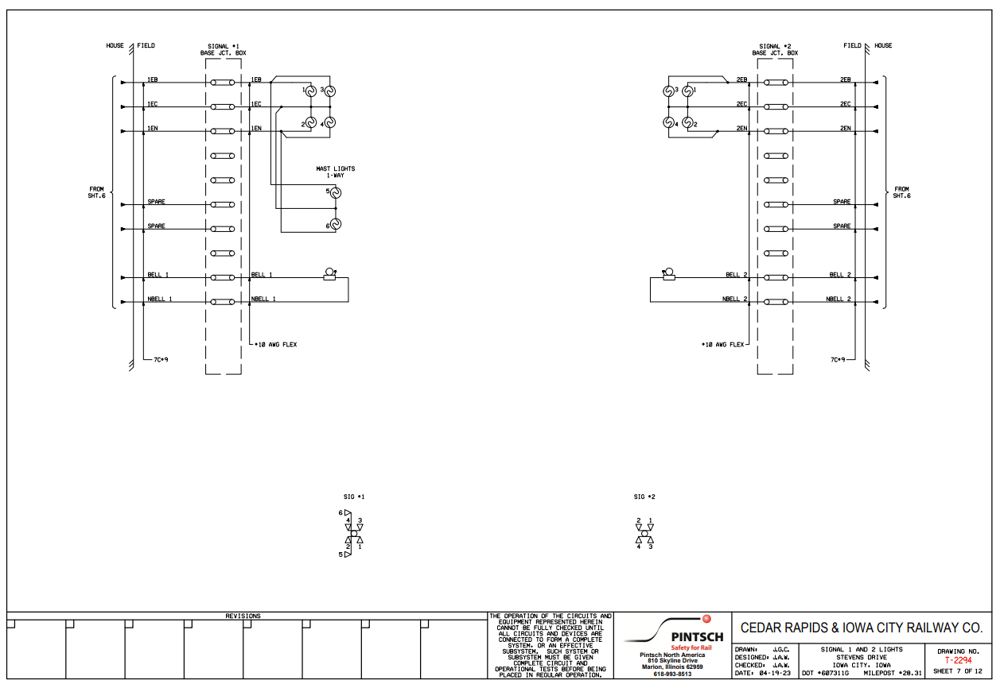

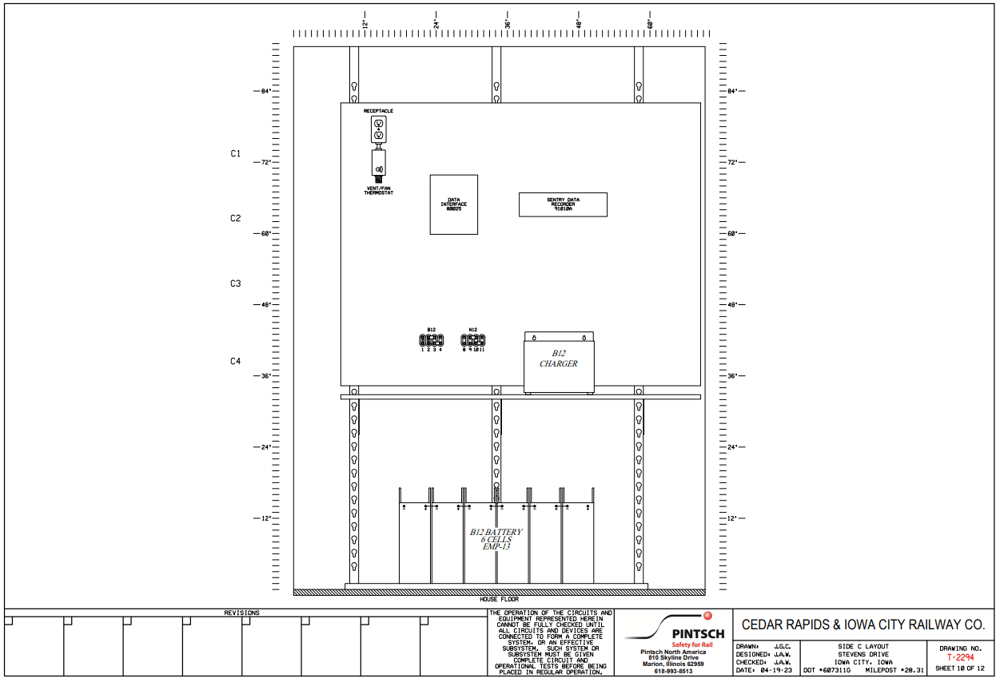

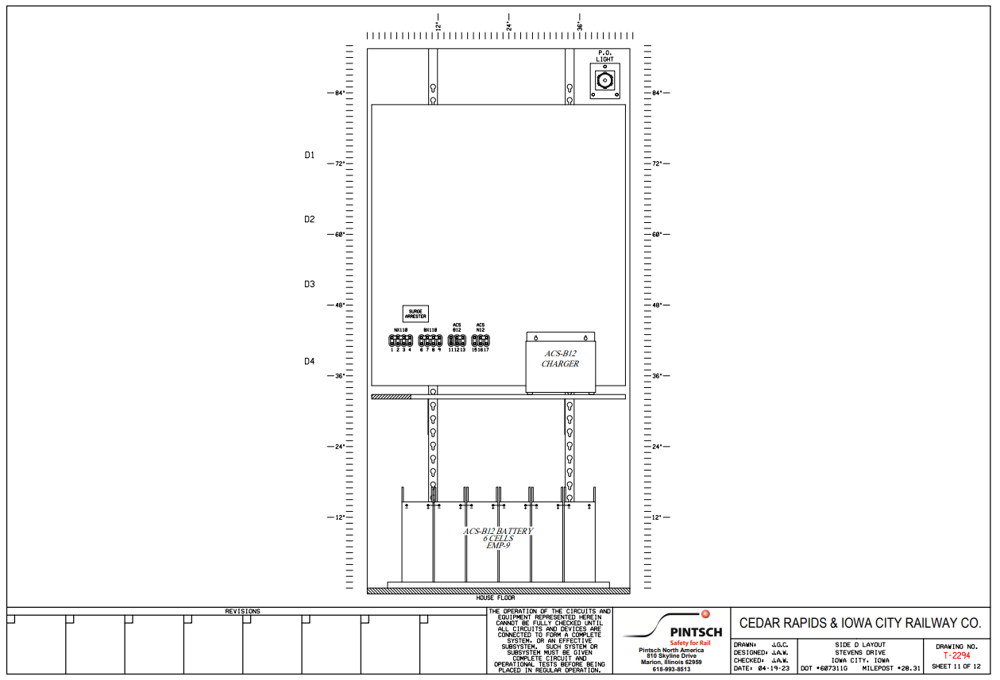

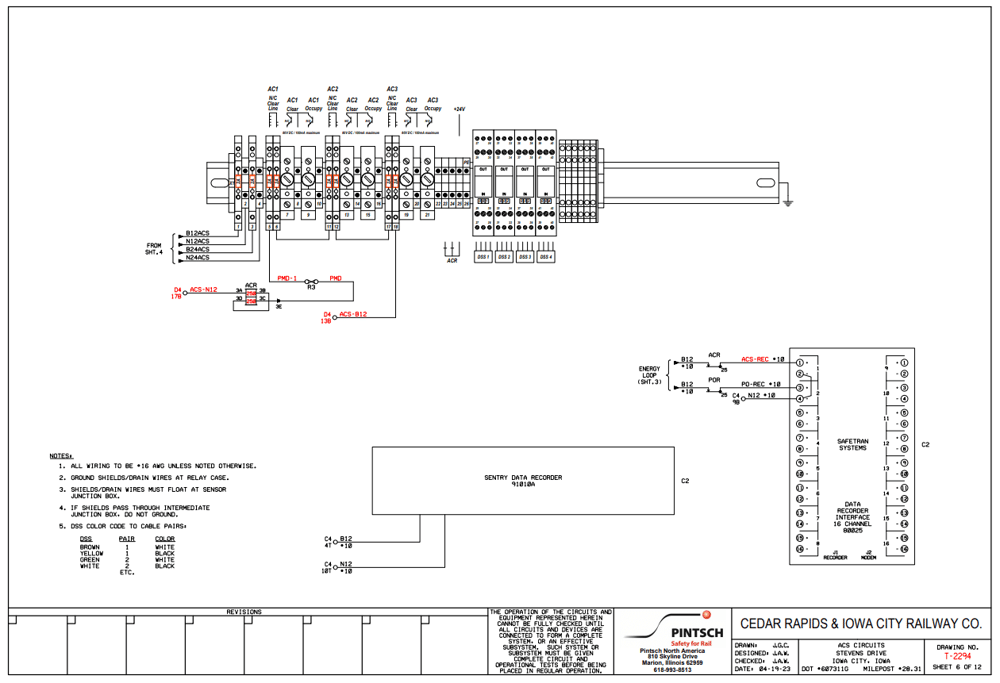

Pintch Tieffenbach NA | Steens Drive Example Iowa Railway Drawing
