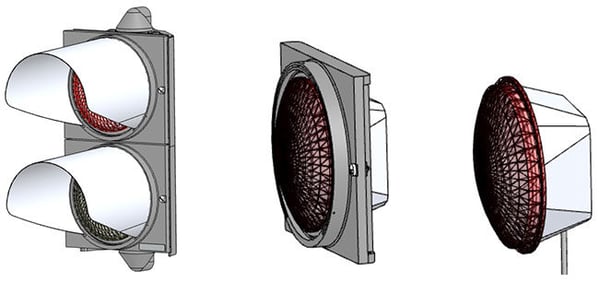

The level crossing road signal SP200 LED is a component installed at level crossing safety systems (BÜSA) to signal to the road users whether the level crossing is secured. SP200 LED consists of a red and a yellow signal light module / light spot (two-chamber system) with the red light spot positioned above the yellow one.
Function:The red or yellow light spots consist of a signal transmitter module that is mounted to the housing door. The optical system of a light spot comprises a diffuser, a Fresnel lens and a housing with an integrated heat sink. Two LED strands serve as light source, ensuring the redundancy of the light spot comparable to a two-filament signal lamp. Alternating operation of the two strands is also possible.
![550-img4](https://www.pintschtiefenbach.us.com/hs-fs/hubfs/550-img4.jpg?width=650&height=282&name=550-img4.jpg)
SP200 LED is available as a standard two-chamber system, with red and yellow signal transmitter modules. A single-chamber system with a red light spot is also available. Other variants, e.g. in green and/or with stencils such as arrows or other symbols, are available on request.
Technical data:- Dimensions: H 486 mm X W 274 mm X D 424 mm
- Weight: ~ 4.7 kg
- Ambient temperature: -25°C - +40°C
- Protection class: IP 54
- Light colour and luminous intensities: according to DB LH / DIN EN 12368 Luminous intensity IType RD 600 cd / YE 500 cd
- Nominal voltage: Open-circuit voltage 15V and 23V or constant current of 360 mA ± 3%. Safe control and monitoring is ensured by the BÜSA module.
