Using the SSPV1 tool
sspv-img-01
sspv-img-02
sspv-img-03

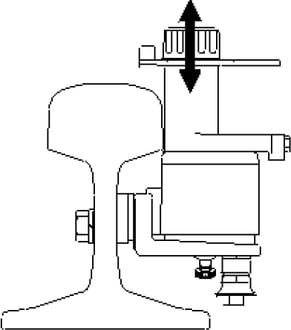

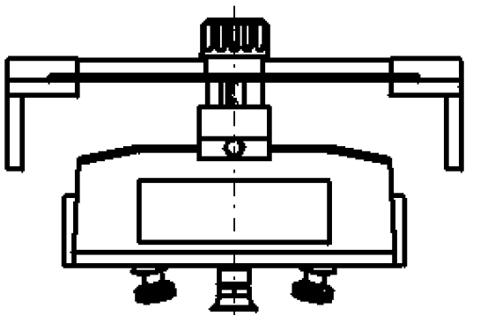

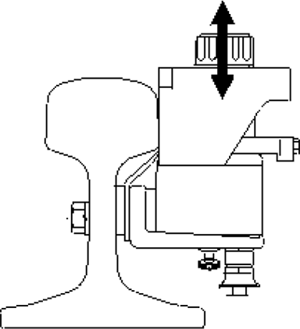

Fig. 1  Place SSPV testing device onto DSS double-wheel sensor

The SSPV must be placed at the center of the DSS and not make contact with the rail head. If the rail head interferes with the height adjustment, then a SSPV with lateral stop plates must be used that slide along the rail head and keep the plate away from the rail head edge.

Selecting the SSPV for the wheel sensor

Wheel sensor SSPV Foot Adjusting range Remark
2N59-1R-200-45
2N59-1R-200-40
2N59-1R-600-40
N59-1R-200-45
2N59-1R-400RE-40
sspv-img-04


sspv-img-07



 40-55 mm intermediate foot without stop
2N59-1R-200-45
2N59-1R-200-40
2N59-1R-600-40
N59-1R-200-45
2N59-1R-400RE-40
sspv-img-05


sspv-img-07



 40-55 mm intermediate foot with stop
2N59-1R-200-40
2N59-1R-400-40
2N59-1R-400RE-40
N59-1R-301-60
sspv-img-06


sspv-img-07



 35-45 mm small foot with stop, otherwise like SSPV4
