Installation of the SSK at the rail
  • To fasten the SSK to the rail, unscrew the hexagon nut
    (SW36), remove the safety ring and the counter holder
  • The M24 threaded rod is positioned from the track interior
    underneath the rail

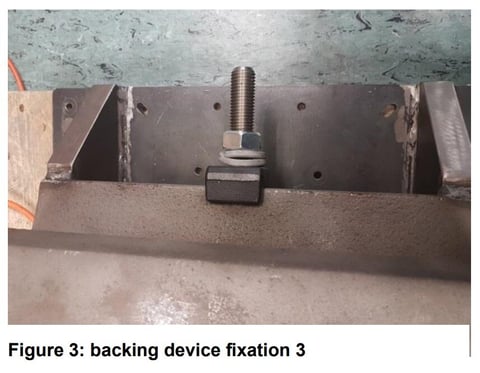

  • Install the counterholder
  • The rail foot must lie between the keyways
  • Use the safety ring and the hexagon nut to secure the
    counter holder
  • Tightening torque 135 (± 15) Nm
ssk8-img-2

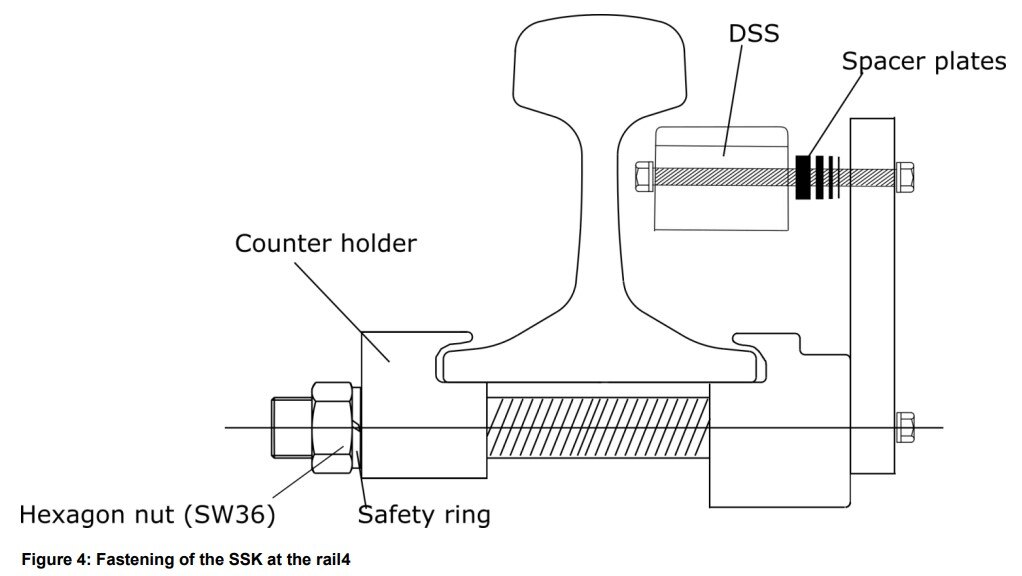

When fastening the claw, make sure that both keyways are not misaligned and clamp the rail foot evenly. Only the proper fit of the claw on the rail guarantees the trouble-free operation of the DSS!
